SLAM Simulation​

With SLAM in the Gazebo simulator, you can select or create various environments and robot models in a virtual world. Other than the preparation of the simulation environment instead of bringing up the robot, SLAM Simulation is pretty similar to the operation of SLAM on the actual TurtleBot3.

The following instructions require prerequisites from the previous section, so please review the Simulation section first.

Launch Simulation World​

Three Gazebo environments are prepared, but for creating a map with SLAM, it is recommended to use either TurtleBot3 World or TurtleBot3 House.
Use one of the following commands to load the Gazebo environment.

In this tutorial, TurtleBot3 World will be used.
Specify your TurtleBot3 model (burger, waffle, waffle_pi) using the TURTLEBOT3_MODEL parameter.

$ export TURTLEBOT3_MODEL=burger
$ ros2 launch turtlebot3_gazebo turtlebot3_world.launch.py

Read more about How to load TurtleBot3 House Specify your TurtleBot3 model (burger, waffle, waffle_pi) using the TURTLEBOT3_MODEL parameter.

$ export TURTLEBOT3_MODEL=burger
$ ros2 launch turtlebot3_gazebo turtlebot3_house.launch.py

Run SLAM Node​

Open a new terminal on the Remote PC with Ctrl + Alt + T and run the SLAM node. Cartographer SLAM method is used by default. Specify your TurtleBot3 model (burger, waffle, waffle_pi) using the TURTLEBOT3_MODEL parameter.

$ export TURTLEBOT3_MODEL=burger
$ ros2 launch turtlebot3_cartographer cartographer.launch.py use_sim_time:=True

Run Teleoperation Node​

Open a new terminal on the Remote PC with Ctrl + Alt + T and run the teleoperation node from the Remote PC. Specify your TurtleBot3 model (burger, waffle, waffle_pi) using the TURTLEBOT3_MODEL parameter.

$ export TURTLEBOT3_MODEL=burger
$ ros2 run turtlebot3_teleop teleop_keyboard

 Control Your TurtleBot3!
 ---------------------------
 Moving around:
        w
   a    s    d
        x

 w/x : increase/decrease linear velocity
 a/d : increase/decrease angular velocity
 space key, s : force stop

 CTRL-C to quit

Save Map​

When the map is has been created, open a new terminal on the Remote PC with Ctrl + Alt + T and save the map.

$ ros2 run nav2_map_server map_saver_cli -f ~/map

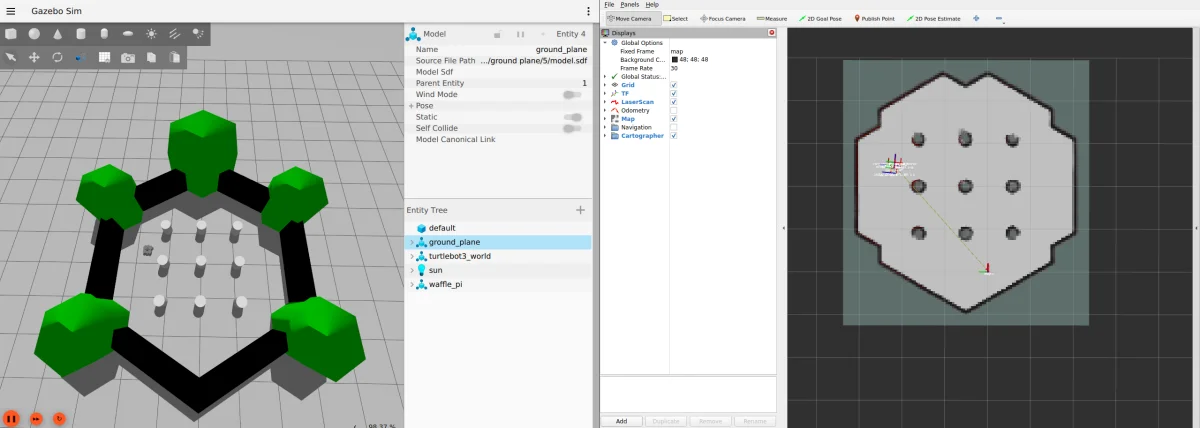

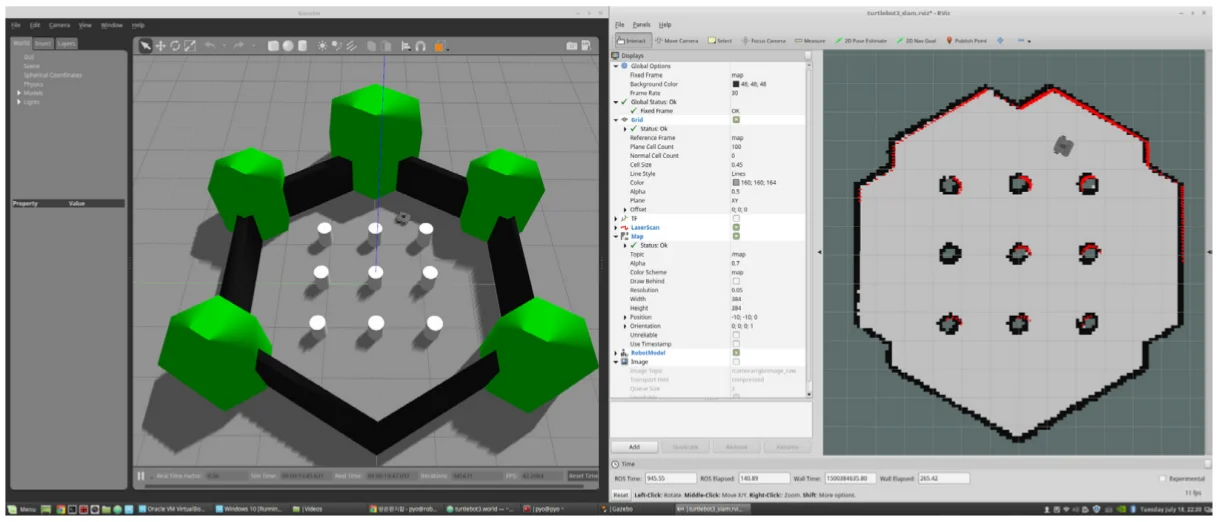

The saved map.pgm file
