Simulation

info

NOTE

  • The Simulation should be run from the Remote PC.
  • Launching the Simulation for the first time on the Remote PC may take some time to setup the environment.

Read more about TurtleBot3 Simulation

TurtleBot3 supports simulation development environments that can allow for development with a virtual robot. There are two development environments to do this, one using fake node with 3D visualization in RViz, and the other is the 3D robot simulator Gazebo.

  • fake node simulation is suitable for testing the robot model and movement, but it does not support sensors.

  • If you need to perform SLAM or Navigation, Gazebo would be the preferred solution as it supports sensors such as IMU, LDS, and camera.

  • Gazebo Tutorials : http://gazebosim.org/tutorials

Gazebo Simulation​

The content in the e-Manual may be updated without prior notice and video content may be outdated.

This Gazebo Simulation uses the ROS Gazebo package, Gazebo version ROS 2 Humble has to be installed before running these instructions.

Install Simulation Package​

The TurtleBot3 Simulation Package requires turtlebot3 and turtlebot3_msgs packages. Without these prerequisite packages, the Simulation cannot be launched.
Please follow the PC Setup instructions if you did not install required packages and dependent packages.

$ cd ~/turtlebot3_ws/src/
$ git clone -b humble https://github.com/ROBOTIS-GIT/turtlebot3_simulations.git
$ cd ~/turtlebot3_ws && colcon build --symlink-install

Launch Simulation World​

Three simulation environments are prepared for TurtleBot3. Please select one of these environments to launch Gazebo.

Please make sure to completely terminate any other Simulation world before launching a new world.

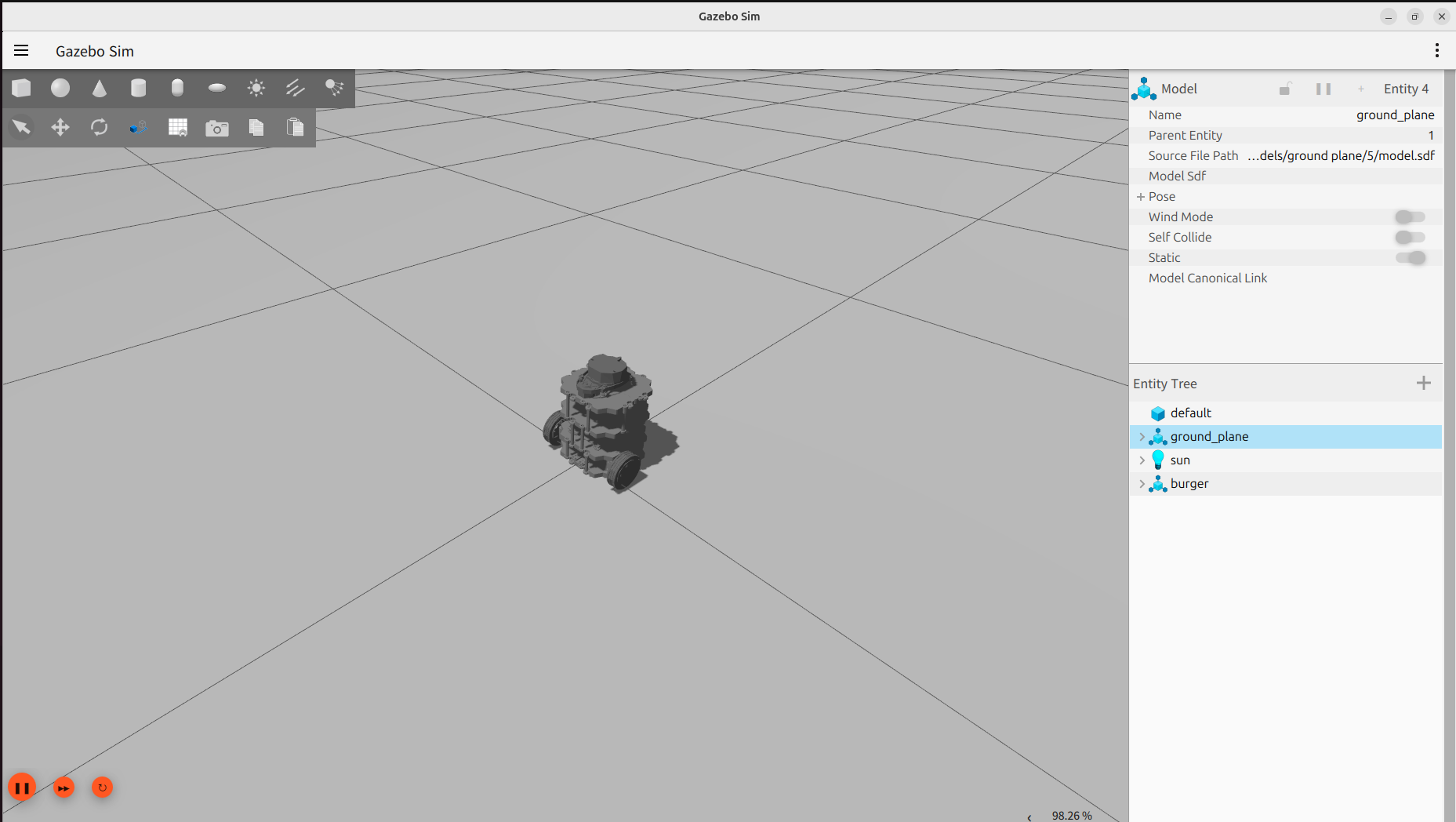

  1. Empty World
$ export TURTLEBOT3_MODEL=burger

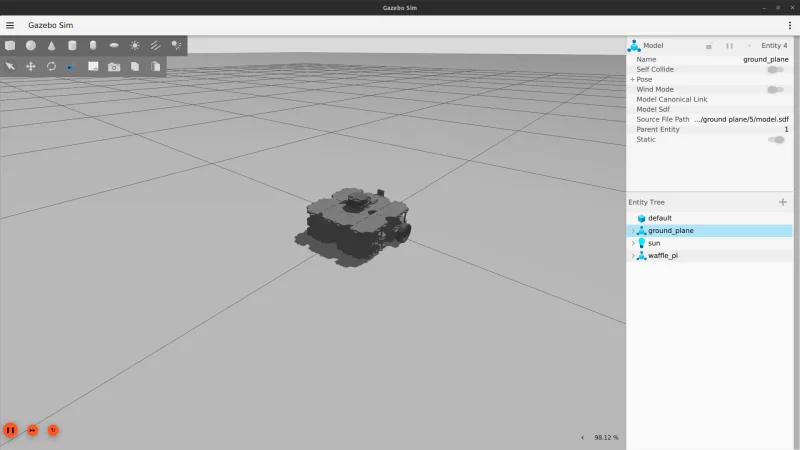

$ ros2 launch turtlebot3_gazebo empty_world.launch.py

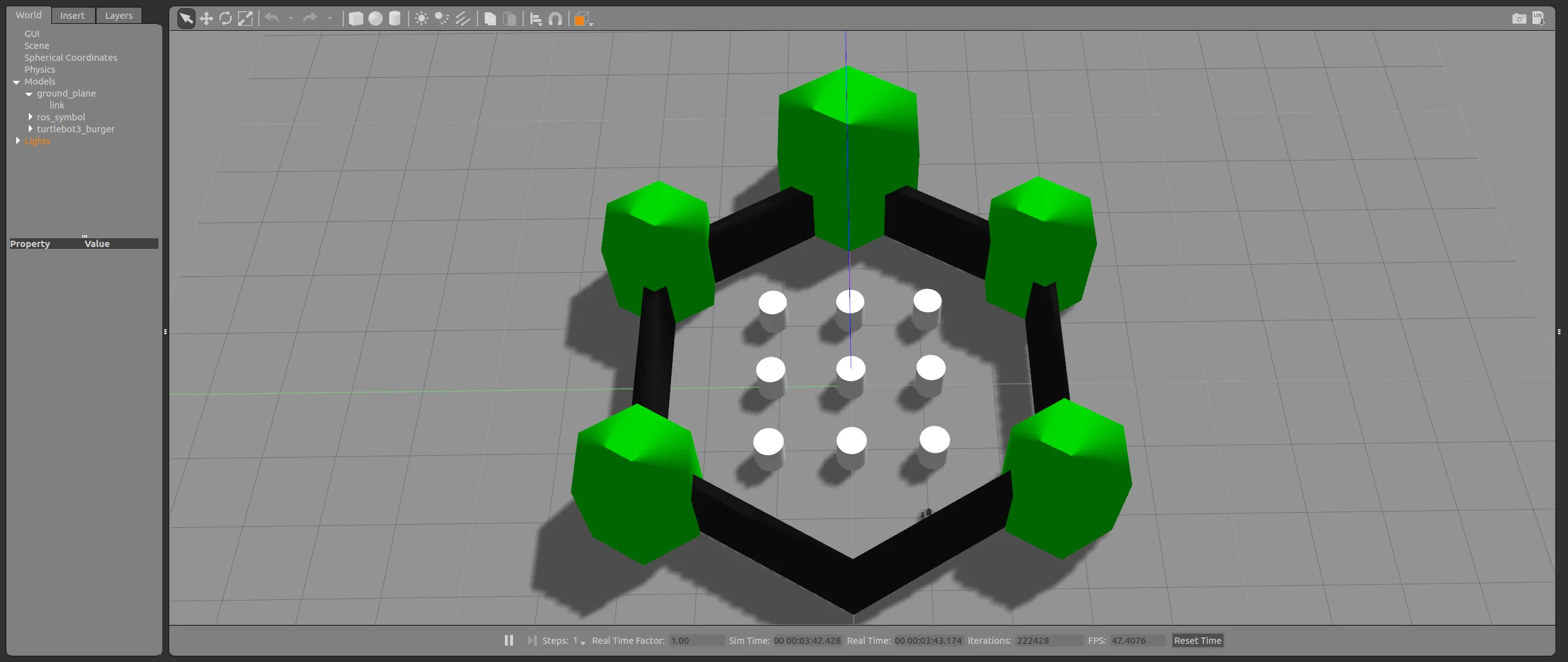

  1. TurtleBot3 World
$ export TURTLEBOT3_MODEL=waffle

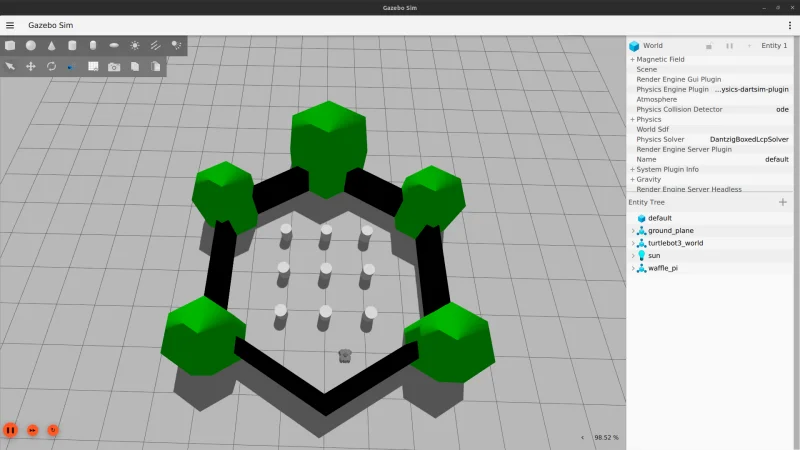

$ ros2 launch turtlebot3_gazebo turtlebot3_world.launch.py

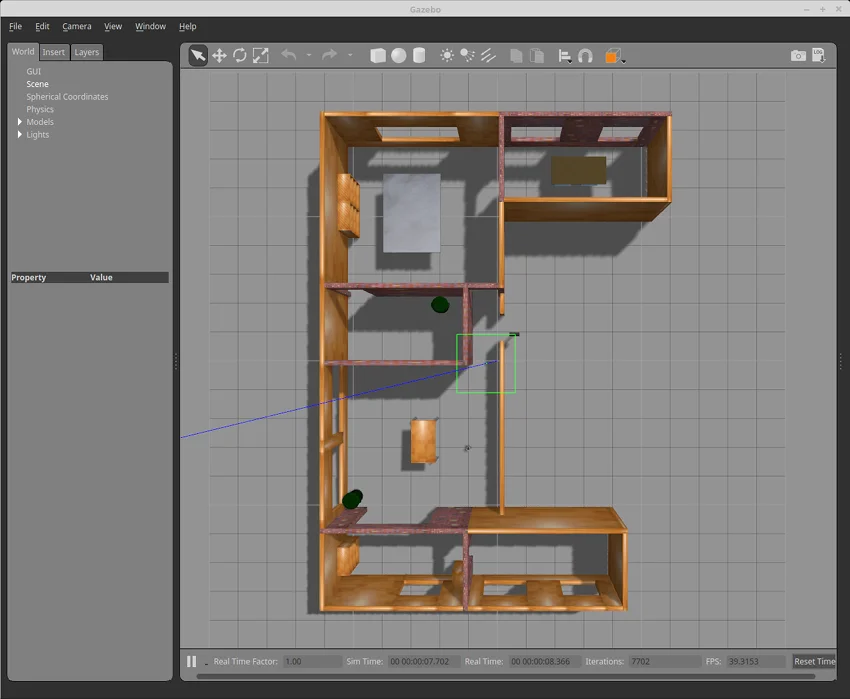

  1. TurtleBot3 House
$ export TURTLEBOT3_MODEL=waffle_pi

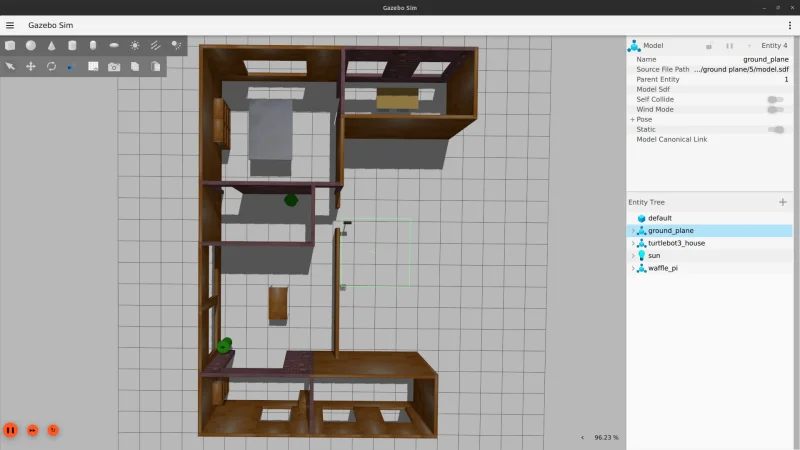

$ ros2 launch turtlebot3_gazebo turtlebot3_house.launch.py

NOTE: If TurtleBot3 House is launched for the first time, downloading the map may take more than a few minutes depending on network status.

Operate TurtleBot3​

In order to teleoperate the TurtleBot3 with a keyboard, launch the teleoperation node with the command below in a new terminal window.

$ ros2 run turtlebot3_teleop teleop_keyboard

Read more about How to run Autonomous Collision Avoidance

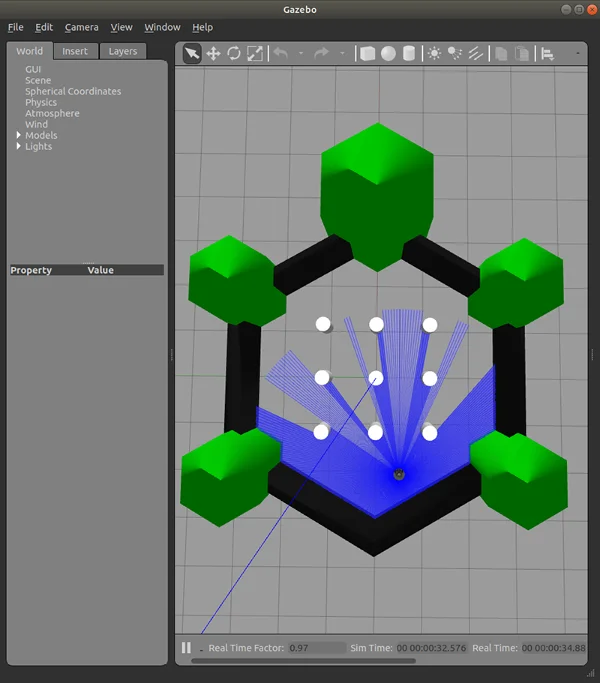

A simple collision avoidance node which keeps a safe distance from obstacles and makes turns to avoid collisions is provided with the TurtleBot3 simulation packages.
In order to autonomously drive a TurtleBot3 in the TurtleBot3 world, please follow the instructions below.

  1. Terminate the turtlebot3_teleop_key node by entering Ctrl + C in the terminal running the teleop node.

  2. Enter the command below in the terminal.

$ ros2 run turtlebot3_gazebo turtlebot3_drive

Read more about How to visualize Simulation data(RViz2)

RViz2 visualizes published topics while simulation is running. You can launch RViz2 in a new terminal window with the following command.

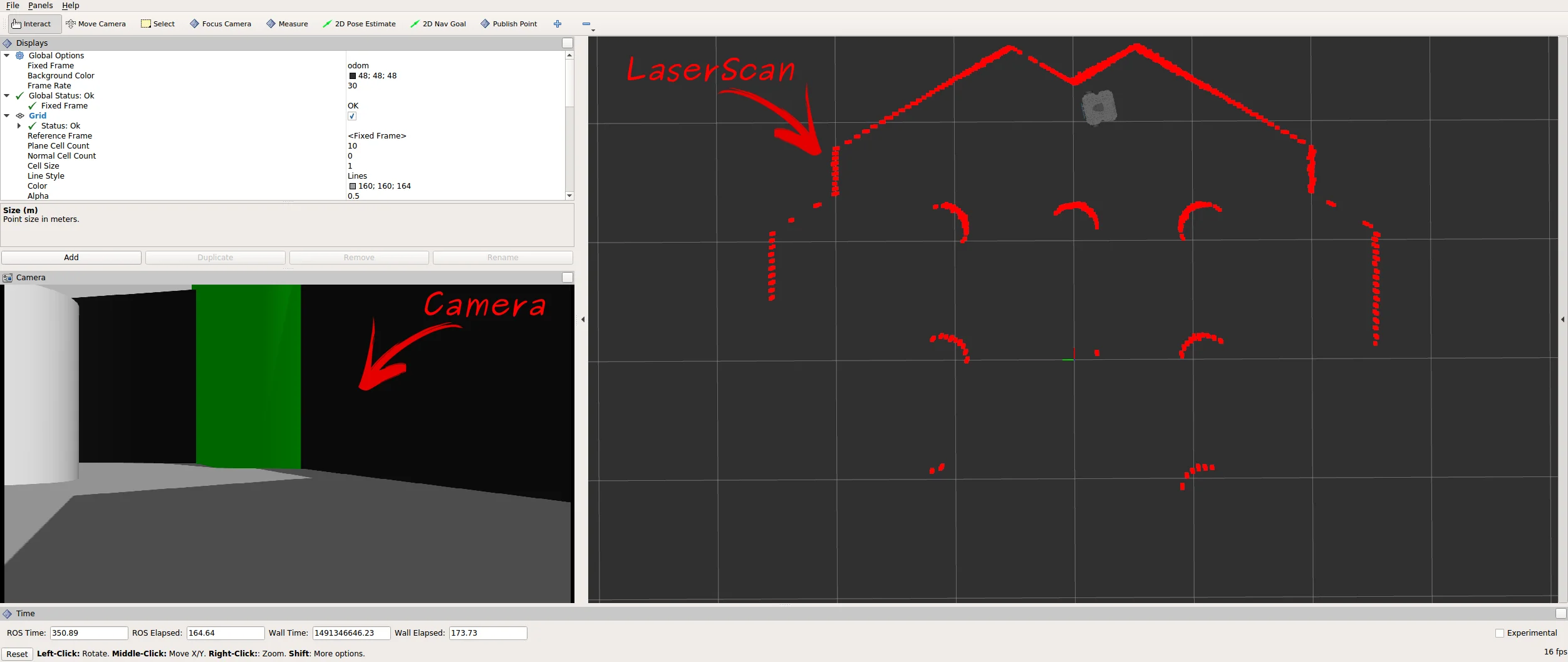

$ ros2 launch turtlebot3_bringup rviz2.launch.py
