Machine Learning

Machine learning, learning through experience, is a data analysis technique that teaches computers to recognize what is natural for people and animals. There are three types of machine learning: supervised learning, unsupervised learning, reinforcement learning.

This application is reinforcement learning with DQN (Deep Q-Learning). The reinforcement learning is concerned with how software agents ought to take actions in an environment, so as to maximize some notion of cumulative reward.

The contents in e-Manual are subject to be updated without a prior notice. Therefore, some video may differ from the contents in e-Manual.

This shows reinforcement learning with TurtleBot3 in gazebo. This reinforcement learning example uses the Deep Q-Network (DQN) algorithm, utilizing data from the robot's Laser Distance Sensor (LDS).

Software Setup​

Note: This package was built on Ubuntu 22.04 and ROS2 Humble, Python 3.10.

  1. Install Requirements
$ pip install --upgrade numpy==1.26.4 scipy==1.10.1 tensorflow==2.19.0 keras==3.9.2 pyqtgraph

  1. Machine Learning packages

    WARNING: Be sure to install turtlebot3, turtlebot3_msgs and turtlebot3_simulations package before installation of machine learning packages.

    $ cd ~/turtlebot3_ws/src/
    $ git clone -b humble https://github.com/ROBOTIS-GIT/turtlebot3_machine_learning.git
    $ cd ~/turtlebot3_ws && colcon build --symlink-install

Set parameters​

The goal of DQN Agent is to get the TurtleBot3 to the goal avoiding obstacles. When TurtleBot3 gets closer to the goal, it gets a positive reward, and when it gets farther it gets a negative reward. The episode ends when the TurtleBot3 crashes on an obstacle or after a certain period of time. During the episode, TurtleBot3 gets a big positive reward when it gets to the goal, and TurtleBot3 gets a big negative reward when it crashes on an obstacle.

Set state​

State is an observation of environment and describes the current situation. Here, state_size is 26 and has 24 LDS values, distance to goal, and angle to goal.
LDS values use a forward 180-degree range, so you need 48 values in a 360-degree range.

Turtlebot3's LDS default is set to 360. You can modify sample of LDS at /turtlebot3_simulations/turtlebot3_gazebo/models/turtlebot3_burger/model.sdf.

gedit ~/turtlebot3_ws/src/turtlebot3_simulations/turtlebot3_gazebo/models/turtlebot3_burger/model.sdf
<sensor name="hls_lfcd_lds" type="ray">    # Find the "hls_lfcd_lds"
  <visualize>true</visualize>    # Visualization of LDS. If you don't want to see LDS, set to `false`
<scan>
  <horizontal>
    <samples>360</samples>    # The number of sample. Modify it to 48
    <resolution>1.000000</resolution>
    <min_angle>0.000000</min_angle>
    <max_angle>6.280000</max_angle>
  </horizontal>
</scan>

Note
More lidar points can be used, but they require more computing resources. To use a different number of lidar points, replace state_size in Hyper parameter.

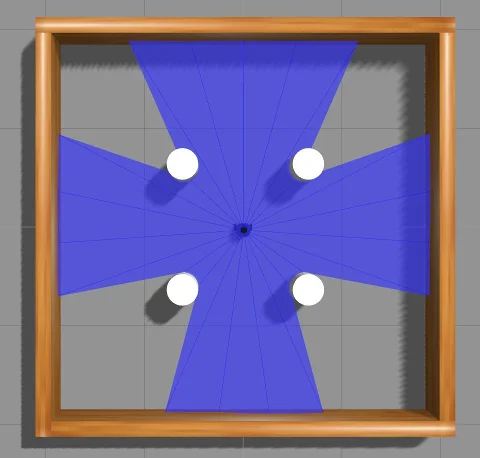

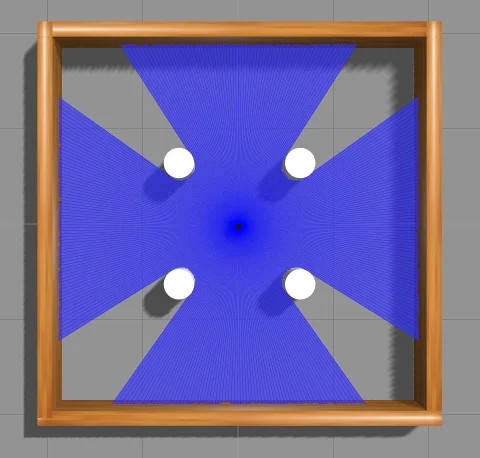

sample = 360sample = 24

Set action

  • Action is what an agent can do in each state. Here, turtlebot3 has always 0.15 m/s of linear velocity. angular velocity is determined by action.
ActionAngular velocity(rad/s)
01.5
10.75
20
3-0.75
4-1.5

Set reward

  • When turtlebot3 takes an action in a state, it receives a reward. The reward design is very important for learning. A reward can be positive or negative. When turtlebot3 gets to the goal, it gets big positive reward. When turtlebot3 collides with an obstacle, it gets big negative reward. If you want to apply your reward design, modify calculate_reward function at turtlebot3_machine_learning/turtlebot3_dqn/turtlebot3_dqn/dqn_environment.py.

  1. Calculate reward
    At each step, it determines whether it succeeded or failed, and calculates a reward for TurtleBot3's behavior.
def calculate_reward(self):
  yaw_reward = 1 - (2 * abs(self.goal_angle) / math.pi)
  obstacle_reward = self.compute_weighted_obstacle_reward()
  reward = yaw_reward + obstacle_reward
  if self.succeed:
        reward = 100.0
  elif self.fail:
        reward = -50.0
  return reward

  1. Yaw reward

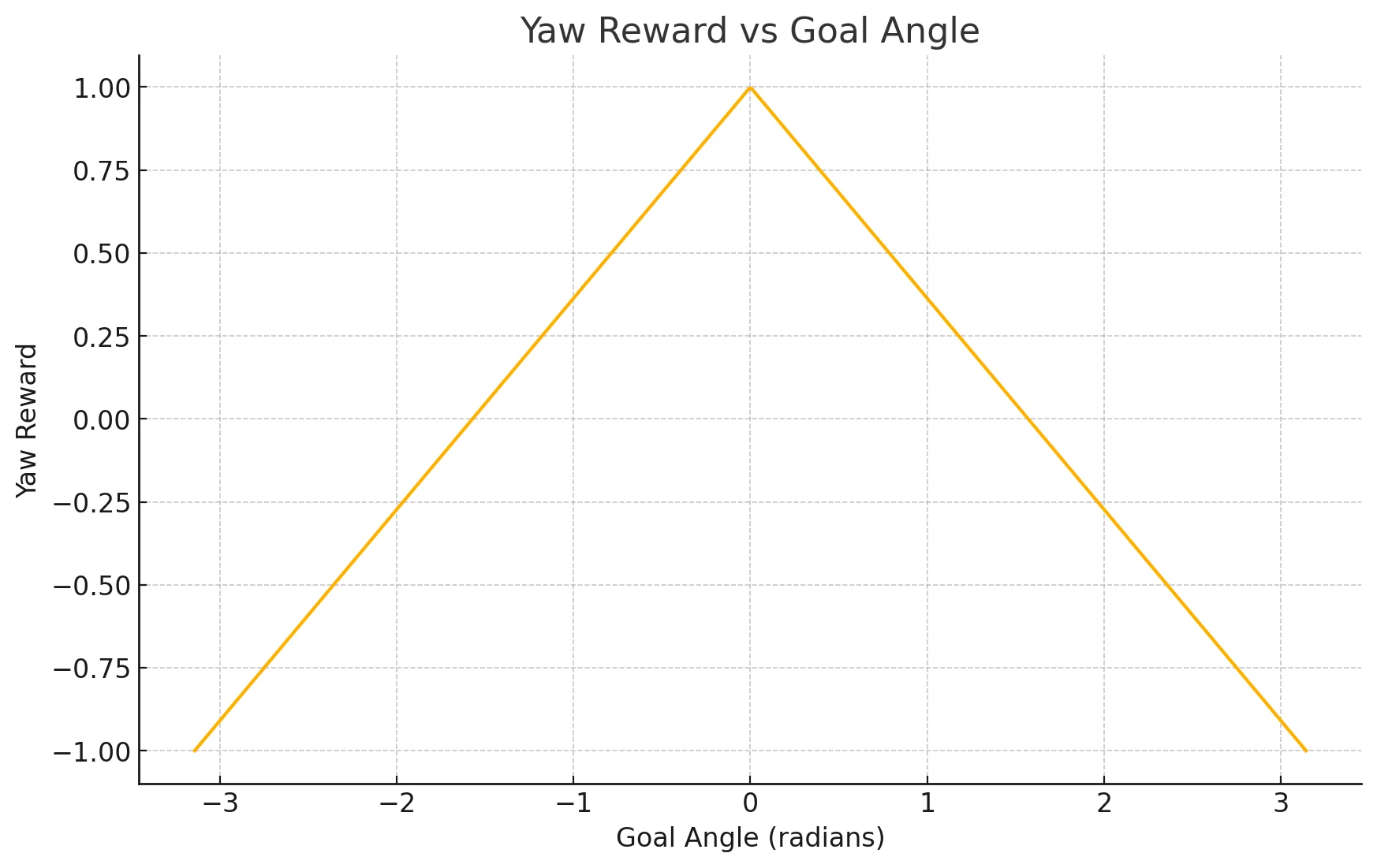

    Yaw reward uses a square root based reward function. This has the following advantages over a linear function.
yaw_reward = 1 - (2 * abs(self.goal_angle) / math.pi)
  1. Obstacle reward
    Obstacle reward is a function that calculates a penalty based on the distance and angle of obstacles within 0.5 meters in front of the robot, quantitatively assessing the degree of risk.
  • compute_directional_weights() : Calculate the importance of each obstacle angle.
def compute_directional_weights(self, relative_angles, max_weight=10.0):
    power = 6
    raw_weights = (numpy.cos(relative_angles))**power + 0.1
    scaled_weights = raw_weights * (max_weight / numpy.max(raw_weights))
    normalized_weights = scaled_weights / numpy.sum(scaled_weights)
    return normalized_weights
  • The closer to the front, the higher the weight, and the higher the power, the stronger this weight. After that, we scale and normalize by max_weight.

  • compute_weighted_obstacle_reward() : Apply the weights to calculate the obastcle reward.
    def compute_weighted_obstacle_reward(self):
        if not self.front_ranges or not self.front_angles:
            return 0.0

        front_ranges = numpy.array(self.front_ranges)
        front_angles = numpy.array(self.front_angles)
        valid_mask = front_ranges <= 0.5
        if not numpy.any(valid_mask):
            return 0.0

        front_ranges = front_ranges[valid_mask]
        front_angles = front_angles[valid_mask]

        relative_angles = numpy.unwrap(front_angles)
        relative_angles[relative_angles > numpy.pi] -= 2 * numpy.pi

        weights = self.compute_directional_weights(relative_angles, max_weight=10.0)
        safe_dists = numpy.clip(front_ranges - 0.25, 1e-2, 3.5)
        decay = numpy.exp(-3.0 * safe_dists)
        weighted_decay = numpy.dot(weights, decay)

        reward = - (1.0 + 4.0 * weighted_decay)
        return reward
    • Select only obstacles located within 0.5 meters and penalize obstacles in range proportional to their distance. Closer obstacles are weighted more heavily to encourage TurtleBot3 to avoid them when they are in front of it.

Set hyper parameters

  • This tutorial has been learned using DQN. DQN is a reinforcement learning method that selects a deep neural network by approximating the action-value function(Q-value). Agent has follow hyper parameters at /turtlebot3_machine_learning/turtlebot3_dqn/turtlebot3_dqn/dqn_agent.py.
Hyper parameterdefaultdescription
update_target_after5000Update rate of target network.
discount_factor0.99Represents how much future events lose their value according to how far away.
learning_rate0.0007Learning speed. If the value is too large, learning does not work well, and if it is too small, learning time is long.
epsilon1.0The probability of choosing a random action.
epsilon_min0.05The minimum of epsilon.
batch_size128Size of a group of training samples.
min_replay_memory_size5000Start training if the replay memory size is greater than 5000.
replay_memory500000The size of replay memory.
state_size26The number of information features an agent can observe at a point in time. LDS values, distance to goal, and angle to goal.

Run Machine Learning​

The contents in e-Manual are subject to be updated without a prior notice. Therefore, some video may differ from the contents in e-Manual.


Description of the stages

  1. Stage 1 (No Obstacle)
    Stage 1 is a 4x4 map with no obstacles.


  1. Stage 2 (Static Obstacle)
    Stage 2 is a 4x4 map with four cylinders of static obstacles.


  1. Stage 3 (Moving Obstacle)
    Stage 3 is a 4x4 map with four cylinders of moving obstacles.


  1. Stage 4 (Combination Obstacle)
    Stage 4 is a 5x5 map with walls and two cylinders of moving obstacles.


Understanding the Machine Learning simulation

  1. Reset environment
    Before the start of an episode, reset the position of the goal and regenerate the goal.

  1. Select an action
    The behavior is determined by epsilon value, which decreases as training progresses.

  • What is Q-value?
    • Q-value is a key concept in reinforcement learning, meaning the expected cumulative reward for performing an action in a state.
    • The agent tries to maximize its reward by choosing the action with the highest Q-value.
  • What is epsilon?
    • Epsilon is the probability of an agent doing an 'Exploration'.
    • Exploration means trying out different behaviors because you don't know much about the environment, so the Q value isn't accurate yet.
    • If the epsilon value is high, random behaviors (exploration) are more likely to be selected. If the epsilon value is low, behaviors with high Q-values (exploitation) are more likely to be selected.

  1. Training model
    After the robot performs an action, it receives a reward or penalty for its behavior and checks to see if it reached its goal.

Run machine learning

  1. Bring the stage in Gazebo map.
$ ros2 launch turtlebot3_gazebo turtlebot3_dqn_{$stage_num}.launch.py

argument

  • stage_num
  • default: 1
  • description: The integer value of stage you want to run. This package has stations numbered 1 through 4, as described above.

  1. Run Gazebo environment node.
    This node manages the Gazebo environment. It regenerates the Goal and initializes the TurtleBot's location when an episode starts anew.
$ ros2 run turtlebot3_dqn dqn_gazebo {$stage_num}

  1. Run DQN environment node.
    This node manages the DQN environment. It calculates the state of the TurtleBot and uses it to determine rewards, success, and failure.
$ ros2 run turtlebot3_dqn dqn_environment

  1. Run DQN agent node.
    This node trains the TurtleBot. It trains TurtleBot with calculated rewards and determines its next behavior.
$ ros2 run turtlebot3_dqn dqn_agent --ros-args -p epsilon_decay:=6000 -p max_training_episodes:=1000 -p use_gpu:=true -p model_file:=model1.h5 -p verbose:=true

argument

  • epsilon_decay
  • default: 6000
  • description: The integer value of epsilon decay. This value is used to determine the probability of an agent doing an Exploration. A larger epsilon_decay results in more Exploration over time
  • max_training_episodes
  • default: 1000
  • description: The integer value of max training episodes. This value is used to determine the maximum number of episodes to train the model.
  • use_gpu
  • default: true
  • description: The boolean value of use gpu.
  • model_file
  • default: None
  • description: Name of the model file located in the saved_model directory. If provided, the specified pretrained model will be loaded. If empty, the model will be trained from scratch.
  • verbose
  • default: true
  • description: The boolean value of verbose. If true, the training process will be printed to the terminal.

  1. Test traind model.
    After training, to test the trained model, run test node instead of DQN agent node.
$ ros2 run turtlebot3_dqn dqn_test --ros-args -p model_file:=model1.h5 -p use_gpu:=true -p verbose:=true

argument

  • use_gpu
  • default: true
  • description: The boolean value of use gpu.

model_file

  • default: None
  • description: Name of the model file located in the saved_model directory. It is used to test the pretrained model.
  • verbose
  • default: true
  • description: The boolean value of verbose. If true, the test process will be printed to the terminal.

Run machine learning graph

  1. Action graph
    The Action graph shows the present TurtleBot's action and their rewards, and the total rewards in an episode.
$ ros2 run turtlebot3_dqn action_graph

!action_graph


  1. Result graph

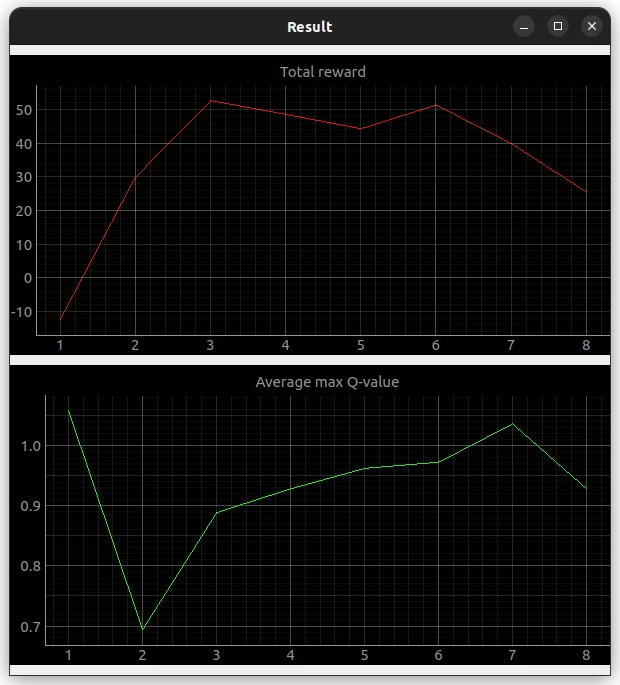

    The Result graph is a linear plot of the average of the maximum values of Q-Value and the total reward as each episode progresses.
$ ros2 run turtlebot3_dqn result_graph

NOTE: The graph is recorded from the time you run the node. For full recording, turn it on before you start learning.

!result_graph


TensorBoard graph

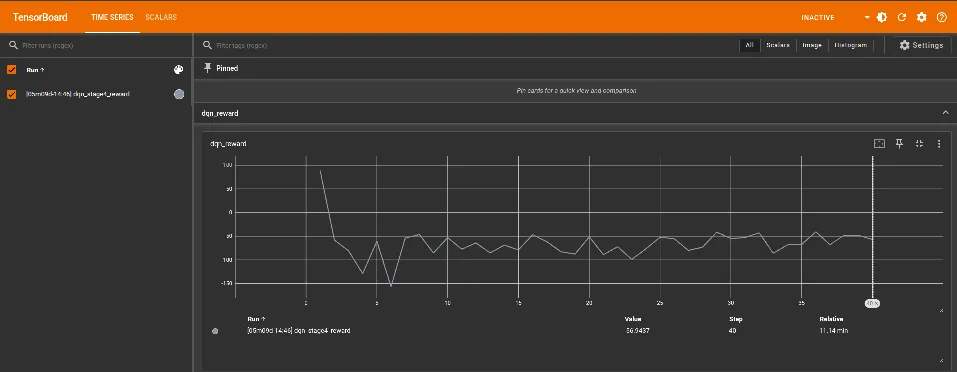

Using TensorBoard, you can visualize the rewards per episode for each learning. The file is saved in ~/turtlebot3_dqn_logs/gradient_tape.

  1. Run TensorBoard
tensorboard --logdir=~/turtlebot3_dqn_logs/gradient_tape

  1. Access the TensorBoard in a browser
    http://localhost:6006
