The OpenMANIPULATOR-X controller has been restructured to utilize the ros2_control framework and MoveIt for enhanced flexibility, modularity, and usability. This updated controller allows for seamless integration with ROS 2-based systems, offering advanced features such as trajectory planning, real-time control, and state feedback.
info
NOTE:
- Make sure ROS 2 Jazzy dependencies are installed before performing these instructions
- Install ROS Packages
- Docker installation is recommended for ROS 2 Jazzy
The OpenMANIPULATOR-X controller has been restructured to utilize the ros2_control framework and MoveIt for enhanced flexibility, modularity, and usability. This updated controller allows for seamless integration with ROS 2-based systems, offering advanced features such as trajectory planning, real-time control, and state feedback.
info
NOTE:
- Make sure ROS dependencies are installed before performing these instructions. - Install ROS Packages
The open_manipulator_controller package created by ROBOTIS helps to control each joint of OpenMANIPULATOR-X and to check the status of OpenMANIPULATOR-X through ROS messages.
In order to operate the OpenMANIPULATOR-X, the controller package should be running in the first place.
Other experimental controllers are available in the Experimental section.
info
NOTE:
- Make sure that dependent packages are installed before performing these instructions - Install ROS Packages
info
Arduino sketch for OpenCR OpenMANIPULATOR-X includes the controller in the code.
Launch Controller
- Jazzy
- Humble
- Noetic
- Arduino
Open a new terminal and launch the OM packages for ROS 2 Jazzy.
- When operating with
U2D2
Close all terminal and enter the command below in each new terminal.
$ ros2 launch open_manipulator_bringup open_manipulator_x.launch.py
- When operating with
OpenCR
Close all terminals and enter the command below in the new terminal.
$ ros2 launch open_manipulator_bringup open_manipulator_x.launch.py port_name:=/dev/ttyACM0
warning
WARNING :
Please check each joint position before running open_manipulator_x. The manipulator will not operate if any joint is out of operable range.

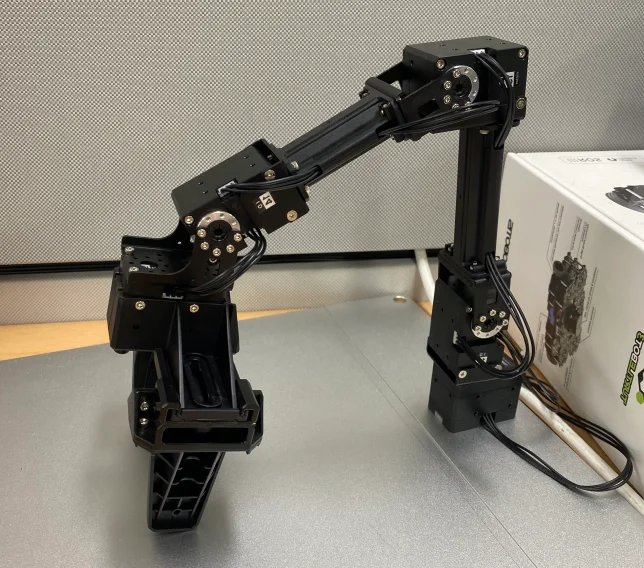

The following image describes the recommended pose of open_manipulator_x at start up. Please adjust the pose before the torque is turned on by the controller.
Following message will be shown in the Terminal after the process done successfully with U2D2.
$ ros2 launch open_manipulator_bringup open_manipulator_x.launch.py
