• In this chapter, you will use the Dynamixel Easy SDK with the OpenRB-150 Tutorial Kit to make the motor move.

Requirements

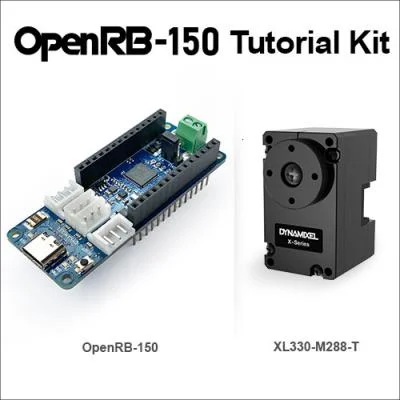

• OpenRB-150 Tutorial Kit [US] [KR]


Download and Build SDK

• Download the latest version of the Dynamixel Easy SDK from the GitHub repository

git clone https://github.com/ROBOTIS-GIT/DynamixelSDK.git

Python

• Enter the Python directory and install the SDK using pip

cd DynamixelSDK/python
pip install .

• NOTE: Also you can install the SDK directly using pip without cloning the repository.

pip install dynamixel-sdk

C++

• Build the SDK by following the instructions below

cd DynamixelSDK/c++/build/linux64
sudo make install

• Successful output log:

mkdir -p ./.objects/
g++ -shared -fPIC -m64 -o ./libdxl_x64_cpp.so ./.objects/group_bulk_read.o ./.objects/group_bulk_write.o ./.objects/group_sync_read.o ./.objects/group_sync_write.o ./.objects/group_fast_bulk_read.o ./.objects/group_fast_sync_read.o ./.objects/group_handler.o ./.objects/packet_handler.o ./.objects/port_handler.o ./.objects/protocol1_packet_handler.o ./.objects/protocol2_packet_handler.o ./.objects/port_handler_linux.o ./.objects/connector.o ./.objects/control_table.o ./.objects/motor.o ./.objects/dynamixel_error.o ./.objects/group_executor.o -lrt
cp "./libdxl_x64_cpp.so" "/usr/local/lib/libdxl_x64_cpp.so"
ln -s "/usr/local/lib/libdxl_x64_cpp.so" "/usr/local/lib/libdxl_x64_cpp.so.2"
ln -s "/usr/local/lib/libdxl_x64_cpp.so" "/usr/local/lib/libdxl_x64_cpp.so.2.0"
ln -s "/usr/local/lib/libdxl_x64_cpp.so" "/usr/local/lib/libdxl_x64_cpp.so.2.0.0"
cp -r ../../include/dynamixel_sdk/* /usr/local/include/dynamixel_sdk
cp -r ../../include/dynamixel_easy_sdk/* /usr/local/include/dynamixel_easy_sdk
cp -r ../../../control_table /usr/local/share/dynamixel_sdk/
ldconfig

Hardware Setup

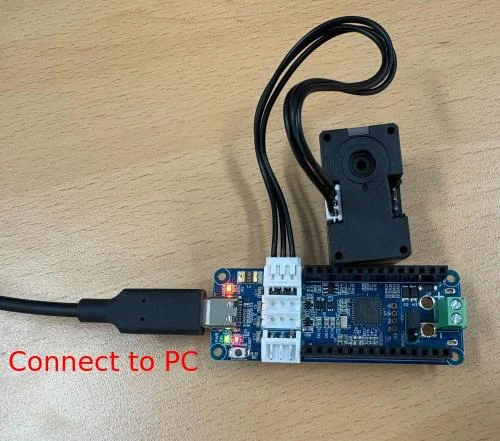

• Connect the OpenRB-150 to the Dynamixel using a TTL cable, and connect it to your computer using a USB-C cable.

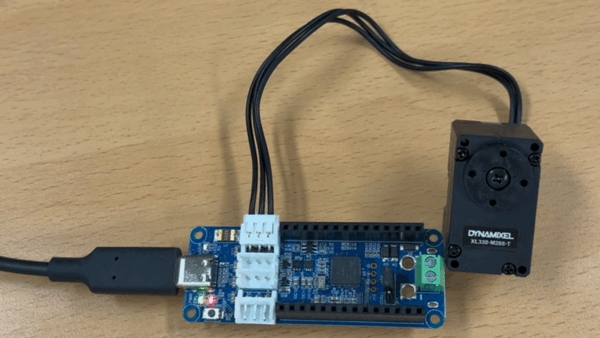

Move Motor to target position

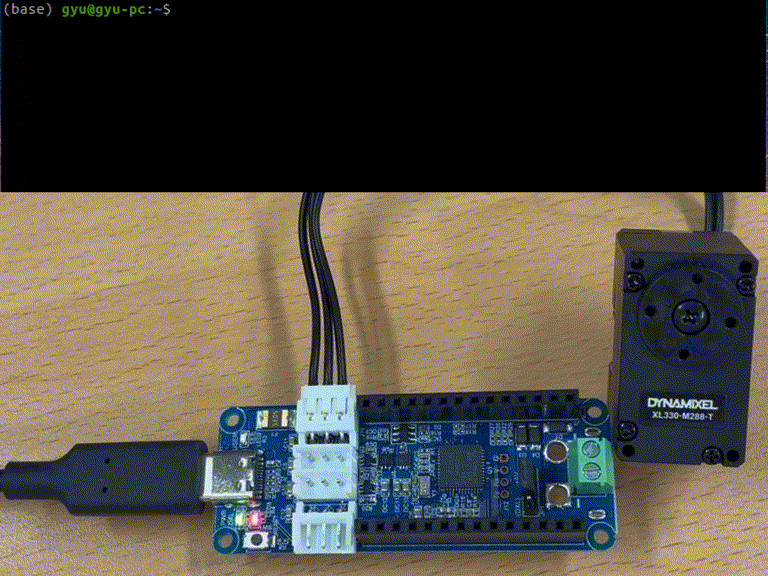

Python

• Open a terminal and enter the Python interactive shell by typing python or python3.

python3

• Copy and paste the following code into the Python shell.

from dynamixel_easy_sdk import *
connector = Connector("/dev/ttyACM0", 57600)
motor1 = connector.createMotor(1)
motor1.disableTorque()
motor1.setOperatingMode(OperatingMode.POSITION)
motor1.enableTorque()
target_position = 2000
motor1.setGoalPosition(target_position)

C++

• Create a new C++ source file named move_motor.cpp and open it in your favorite code editor.

touch move_motor.cpp

• Copy and paste the following code into the move_motor.cpp file.

  #include "dynamixel_easy_sdk/dynamixel_easy_sdk.hpp"

  int main(){
    dynamixel::Connector connector("/dev/ttyACM0", 57600);
    std::unique_ptr<dynamixel::Motor> motor1 = connector.createMotor(1);
    int target_position = 2000;
    motor1->enableTorque();
    motor1->setGoalPosition(target_position);
}

• Build the move_motor.cpp file and execute the compiled binary.

g++ -o move_motor move_motor.cpp -ldxl_x64_cpp
./move_motor
