Communication Overview

To control DYNAMIXEL, communication should be established according to the protocol of DYNAMIXEL. DYNAMIXEL is driven by receiving binary data. Examples of programs for the transmission of this kind of data are described in detail in the User’s Manual of DYNAMIXEL-only controller or the USB2DYNAMIXEL. Thus, this manual describes only the method and protocol of communication used in DYNAMIXEL on the assumption that Main Controller can transfer binary data.

tip

TIP : Users can refer to ROBOTIS's DYNAMIXEL Protocol Compatibility Table with reference.

Packet​

Main Controller and DYNAMIXEL communicate each other by sending and receiving data called Packet. Packet has two kinds: Instruction Packet, which Main Controller sends to control DYNAMIXEL, and Status Packet, which DYNAMIXEL responses to Main Controller.

ID​

ID is a specific number for distinction of each DYNAMIXEL when several DYNAMIXEL's are linked to one bus. By giving IDs to Instruction and Status Packets, Main Controller can control only DYNAMIXEL that you want to control

DYNAMIXEL Protocol​

DYNAMIXEL does the Asynchronous Serial Communication with 8 bit, 1 Stop bit, and None Parity.

If DYNAMIXEL with the same ID is connected, packet will collide and network problem will occur. Thus, set ID as such that there is no DYNAMIXEL with the same ID. To change the DYNAMIXEL's ID, reference the DYNAMIXEL Control Table section in the DYNAMIXEL Wizard 2.0.

note

NOTE: The DYNAMIXEL's initial ID is 1 at the factory condition.

Half Duplex​

Half duplex UART is a serial communication protocol where both TxD and RxD cannot be used at the same time. This method is generally used when many devices need to be connected to a single bus. Since more than one device are connected to the same bus, all the other devices need to be in input mode while one device is transmitting. The Main Controller that controllers DYNAMIXEL actuators sets the communication direction to input mode, and only when it is transmitting an Instruction Packet, it changes the direction to output mode.

Tx, Rx Direction​

For Half Duplex UART, the transmission ending timing is important to change the direction to receiving mode. The bit definitions within the register that indicates UART_STATUS are as the following

  • TXD_BUFFER_READY_BIT: Indicates that the transmission DATA can be loaded into the Buffer. Note that this only means that the SERIAL TX BUFFER is empty, and does not necessarily mean that the all the data transmitted before has left the CPU.
  • TXD_SHIFT_REGISTER_EMPTY_BIT: Set when all the Transmission Data has completed its transmission and left the CPU.

The TXD_BUFFER_READY_BIT is used when one byte is to be transmitted via the serial communication channel, and an example is shown below.

TxDByte(byte bData)
{
  while(!TXD_BUFFER_READY_BIT); //wait until data can be loaded.
  SerialTxDBuffer = bData; //data load to TxD buffer
}

When changing the direction, the TXD_SHIFT_REGISTER_EMPTY_BIT must be checked. The following is an example program that sends an Instruction Packet

DIRECTION_PORT = TX_DIRECTION;
TxDByte(0xff);
TxDByte(0xff);
TxDByte(bID);
TxDByte(bLength);
TxDByte(bInstruction);
TxDByte(Parameter0); TxDByte(Parameter1); ...
DisableInterrupt(); // interrupt should be disable
TxDByte(Checksum); //last TxD
while(!TXD_SHIFT_REGISTER_EMPTY_BIT); //Wait till last data bit has been sent
DIRECTION_PORT = RX_DIRECTION; //Direction change to RXD
EnableInterrupt(); // enable interrupt again
warning

WARNING : Please note the important lines between LINE 8 and LINE 12. Line 8 is necessary since an interrupt here may cause a delay longer than the return delay time and corruption to the front of the status packet may occur.

Byte to Byte Time​

The delay time between bytes when sending an instruction packet. If the delay time is over 100ms, then DYNAMIXEL actuator recognizes this as a communication problem and waits for the next header (0xff 0xff) of a packet again.

Instruction Packet

Instruction Packet is the command data sent to the Device.

Header1Header2Packet IDLengthInstructionParam 1...Param NChecksum
0xFF0xFFPacket IDLengthInstructionParam 1...Param NCHKSUM

The field indicates the start of the Packet.

Packet ID​

The field that indicates the ID of the Device that should receive the Instruction Packet and process it

  1. Range : 0 ~ 253 (0x00 ~ 0xFD), which is a total of 254 numbers that can be used.
  2. Broadcast ID : 254 (0xFE), which makes all connected devices execute the Instruction Packet.

Length​

The field indicates the Byte size of the Instruction, Parameter and Checksum field.

Length = number of Parameters + 2

Instruction​

The field that defines the type of instruction.

ValueInstructionsDescription
0x01PingInstruction that checks whether the Packet has arrived to a device with the same ID as Packet ID
0x02ReadInstruction to read data from the Device
0x03WriteInstruction to write data on the Device
0x04Reg WriteInstruction that registers the Instruction Packet to a standby status; Packet is later executed through the Action instruction
0x05ActionInstruction that executes the Packet that was registered beforehand using Reg Write
0x06Factory ResetInstruction that resets the Control Table to its initial factory default settings
0x08RebootInstruction that reboots DYNAMIXEL (See supported products in the description)
0x83Sync WriteFor multiple devices, Instruction to write data on the same Address with the same length at once
0x92Bulk ReadFor multiple devices, Instruction to write data on different Addresses with different lengths at once (See supported products in the description)

Parameters​

The Parameters are the Instruction's auxiliary data field. The use of the Parameters differ depending on what Instruction is used.

Checksum (Instruction Packet)​

It is used to check if packet is damaged during communication. Checksum is calculated according to the following formula.

Checksum = ~( ID + Length + Instruction + Parameter1 + ... Parameter N )

Where “~” is the Binary Ones Complement operator. When the calculation result of the parenthesis in the above formula is larger than 255 (0xFF), use only lower bytes.

For example, when you want to use below Instruction Packet,

ID=1(0x01), Length=5(0x05), Instruction=3(0x03), Parameter1=12(0x0C), Parameter2=100(0x64), Parameter3=170(0xAA)

Checksum = ~ ( ID + Length + Instruction + Parameter1 + ... Parameter 3 ) = ~ [ 0x01 + 0x05 + 0x03 + 0x0C + 0x64 + 0xAA ] = ~ [ 0x123 ] // Only the lower byte 0x23 executes the Not operation. = 0xDC

Thus, Instruction Packet should be 0xFF, 0xFF, 0x01, 0x05, 0x03, 0x0C, 0x64, 0xAA, 0xDC.

Status Packet(Return Packet)

Header1Header2Packet IDLengthErrorParam 1...Param NChecksum
0xFF0xFFIDLengthErrorParam 1...Param NCHKSUM

Error​

This field displays the error status occurred during the operation of DYNAMIXEL.

BitErrorDescription
Bit 70-
Bit 6Instruction ErrorIn case of sending an undefined instruction or delivering the action instruction without the Reg Write instruction, it is set as 1
Bit 5Overload ErrorWhen the current load cannot be controlled by the set Torque, it is set as 1
Bit 4Checksum ErrorWhen the Checksum of the transmitted Instruction Packet is incorrect, it is set as 1
Bit 3Range ErrorWhen an instruction is out of the range for use, it is set as 1
Bit 2Overheating ErrorWhen internal temperature of DYNAMIXEL is out of the range of operating temperature set in the Control table, it is set as 1
Bit 1Angle Limit ErrorWhen Goal Position is written out of the range from CW Angle Limit to CCW Angle Limit , it is set as 1
Bit 0Input Voltage ErrorWhen the applied voltage is out of the range of operating voltage set in the Control table, it is as 1

For example, when Status Packet is returned as below

0xFF 0xFF 0x01 0x02 0x24 0xD8

It means that the error of 0x24 occurs from DYNAMIXEL whose ID is 01. Since 0x24 is 00100100 as binary, Bit5 and Bit2 become 1. In order words, Overload and Overheating Errors have occurred.

warning

WARNING : The error types on the table above are related to actuators, and the contents may vary depending on the type of DYNAMIXEL.

Checksum (Status Packet)​

It is used to check if packet is damaged during communication. Status Checksum is calculated according to the following formula.

Status Checksum = ~( ID + Length + Error + Parameter1 + ... Parameter N )

Instruction Details

Note that given examples use the following abbreviation to provide clear information.

  • Header : H
  • Reserved: RSRV
  • Length: LEN
  • Instruction: INST
  • Error : ERR
  • Param: P
  • Checksum: CKSM
note

NOTE: The given examples are made based on RX-64. Be aware that DYNAMIXELs using Protocol 1.0 such as AX-12A, DX series, can be also used with this example in the same way.

Ping​

This instruction is used to see if a device exists. Regardless of the Status Return Level, the Ping Instruction returns the Status Packet.

LENINSTP
0x020x01-

Example​

Conditions​

  • ID 1(RX-64) is connected to the PC with an identical baudrate.

Ping Instruction Packet​

H1H2Packet IDLENINSTCKSM
0xFF0xFF0x010x020x010xFB

ID 1 Status Packet​

H1H2Packet IDLENERRCKSM
0xFF0xFF0x010x020x000xFC

Read​

This instruction is to read data in the Control Table of DYNAMIXEL.

LENINSTP1P2
0x040x02Starting AddressLength of Data

Example​

Conditions​

  • ID 1(RX-64) : Read Present Temperature, which is located at the address 43(0x2B)

Read Instruction Packet​

H1H2Packet IDLENINSTP1P2CKSM
0xFF0xFF0x010x040x020x2B0x010xCC

ID 1 Status Packet​

H1H2Packet IDLENERRP1CKSM
0xFF0xFF0x010x030x000x200xDB

Write​

This instruction is to write data to the Control Table of DYNAMIXEL

LENINSTP1P2P3P N+1
N + 30x03Starting Address1st Byte2nd ByteNth Byte

Example​

Conditions​

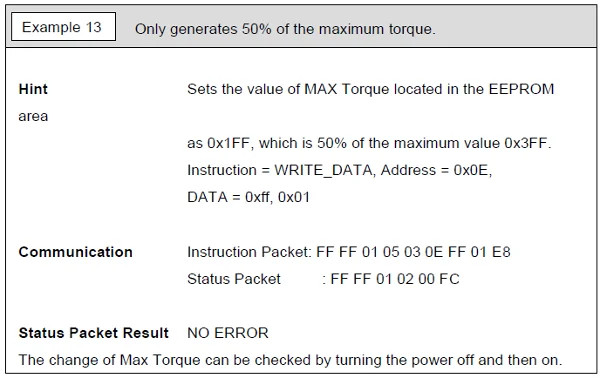

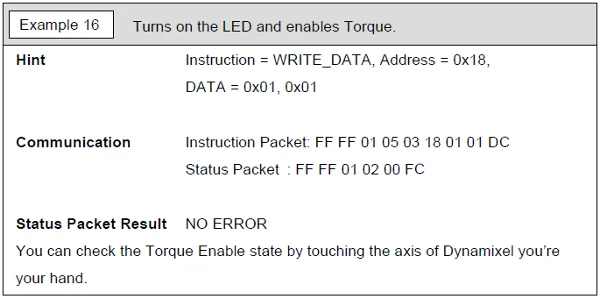

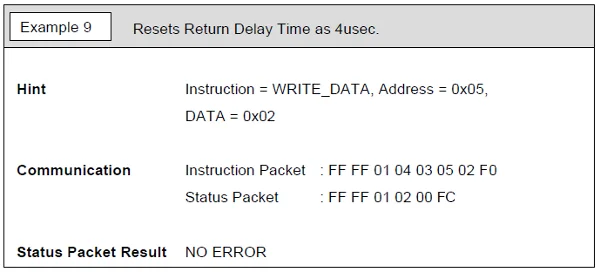

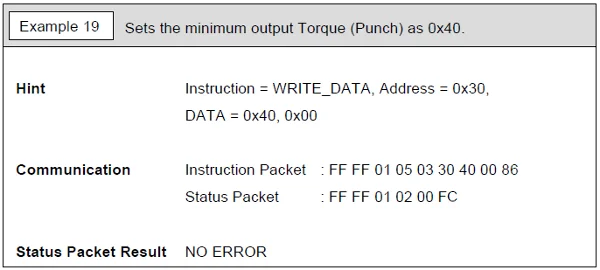

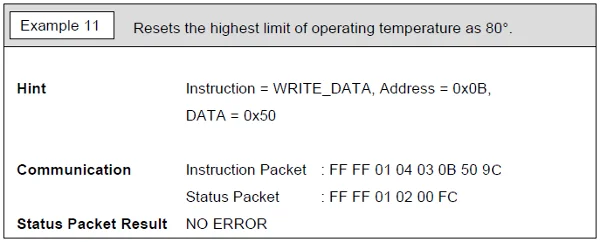

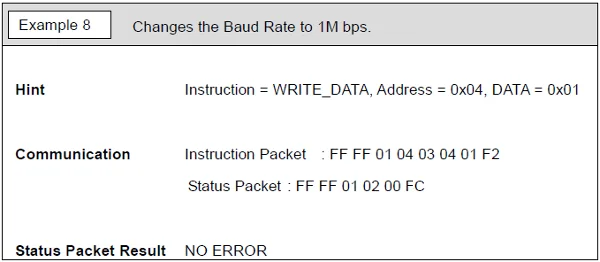

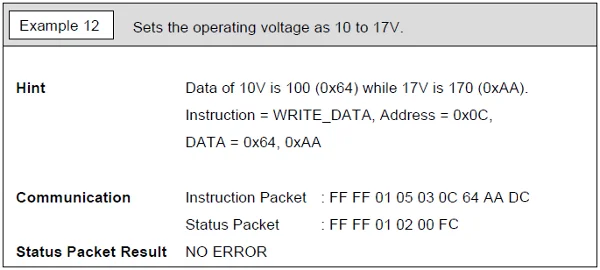

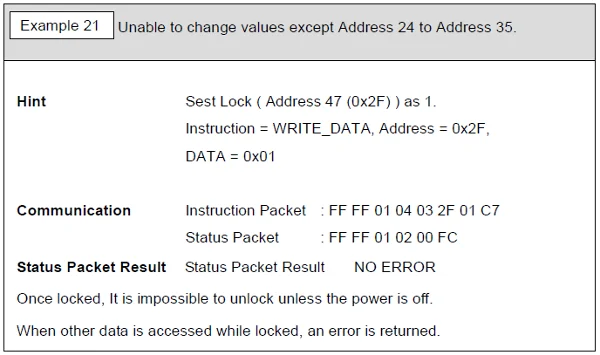

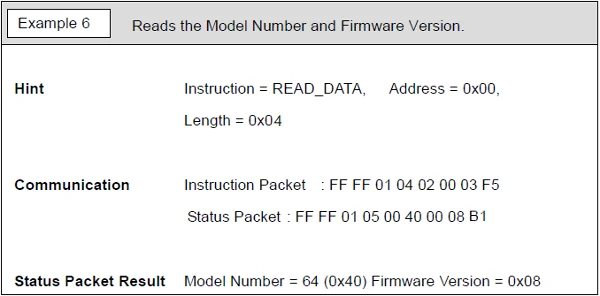

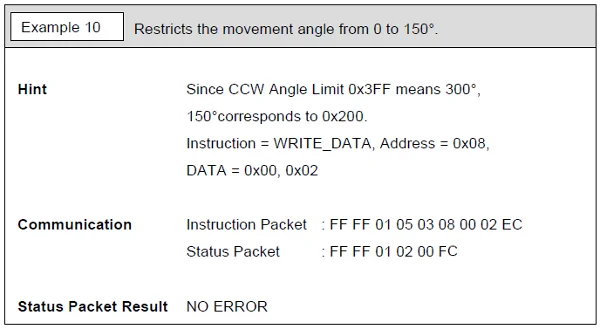

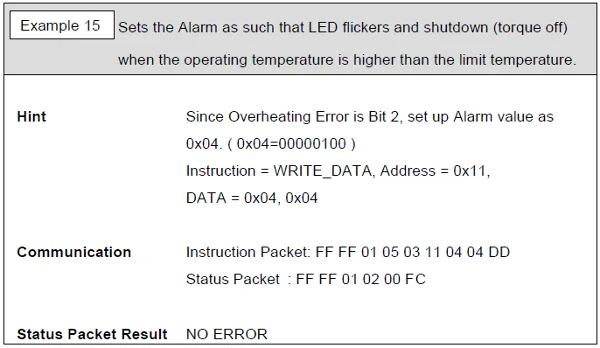

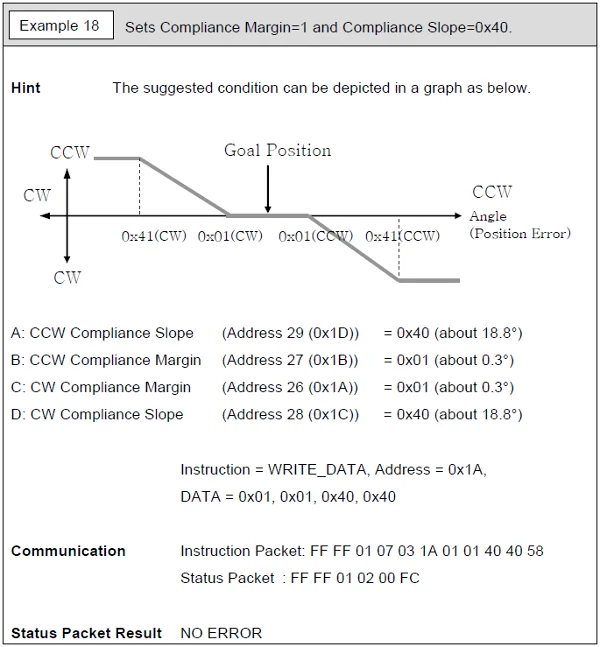

  • ID broadcast(RX-64) : Set the unknwon DYNAMIXEL's ID as "1" by writing 1 to ID(3)

Write Instruction Packet​

H1H2Packet IDLENINSTP1P2CKSM
0xFF0xFF0xFE0x040x030x030x010xF6
warning

WARNING : Status Packet will not be returned if Broadcast ID(0xFE) is used.

Reg Write​

Instruction that is similar to Write Instruction, but has an improved synchronization characteristic

  • Write Instruction is executed immediately when an Instruction Packet is received.
  • Reg Write Instruction registers the Instruction Packet to a standby status, and sets Control table Registered Instruction to ‘1’.
  • When an Action Instruction is received, the registered Packet is executed, and sets Control Table Registered Instruction to ‘0’.
LENINSTP1P2P N+1
N+30x04Starting Address1st ByteNth Byte

Example​

Conditions​

  • ID 1(RX-64) : Reg Write 500(0x1F4) to Goal Position(30) and wait for Action instruction to move.

Reg Write Instruction Packet​

H1H2Packet IDLENINSTP1P2P3CKSM
0xFF0xFF0x010x050x040x1E0xF40x010xE2

ID 1 Status Packet​

H1H2Packet IDLENERRCKSM
0xFF0xFF0x010x020x000xFC

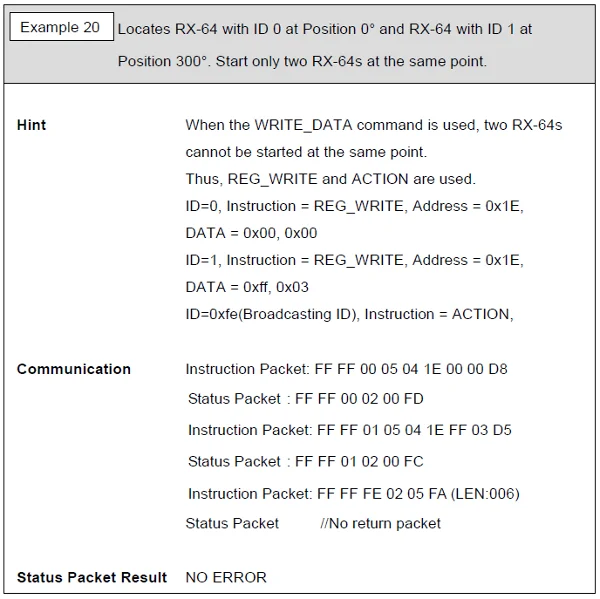

Action​

This instruction is to execute the registered Reg Write instruction. The Action instruction is useful when multiple DYNAMIXEL's are required to start moving at the same time. When several devices are controlled via communication, there is a minor time difference between enabling the first and last device. DYNAMIXEL has resolved this problem by using Action instruction.

LENINSTP
0x020x05-

Example​

Conditions​

  • All DYNAMIXEL's have received Reg Write instructions.
  • As the Packet ID is Broadcast ID (0xFE), the Status Packet is not return.

Action Instruction Packet​

H1H2Packet IDLENINSTCKSM
0xFF0xFF0xFE0x020x050xFA
note

NOTE : Status Packet will not be returned if Broadcast ID(0xFE) is used.

Factory Reset​

This instruction is to reset the Control Table of DYNAMIXEL to the factory default values.

warning

WARNING :

  • Make sure that the Factory Reset Instruction will reset the values in the EEPROM that you set previously.
  • Broadcast ID(0xFE) cannot be used for Factory Reset instruction.
LENINSTP
0x020x06-

Example​

Conditions​

  • ID 0(RX-64) : Factory Reset DYNAMIXEL

Factory Reset Instruction Packet​

H1H2Packet IDLENINSTCKSM
0xFF0xFF0x000x020x060xF7

ID 0 Status Packet​

H1H2Packet IDLENERRCKSM
0xFF0xFF0x000x020x000xFD

Reboot​

This instruction restarts DYNAMIXEL.

Example​

Conditions​

  • ID 1(XM430-W210) : Reboot ID 1 DYNAMIXEL

Reboot Instruction Packet​

H1H2Packet IDLENINSTCKSM
0xFF0xFF0x010x020x080xF4

ID 1 Status Packet​

H1H2Packet IDLENERRCKSM
0xFF0xFF0x010x020x000xFC

Sync Write​

This instruction is used to control multiple DYNAMIXEL's simultaneously with a single Instruction Packet transmission. When this instruction is used, several instructions can be transmitted at once, so that the communication time is reduced when multiple DYNAMIXEL's are connected in a single channel. However, the Sync Write Instruction can only be used to a single address with an identical length of data over connected DYNAMIXEL's. ID should be transmitted as Broadcast ID.

ItemDescription
Instruction0x83
Length((L + 1) * N) + 4, L:Data Length, N:Number of DYNAMIXEL
Parameter 1Starting Address
Parameter 2Length of Data to write
Parameter 3[1st Device] ID
Parameter 4[1st Device] 1st Byte
Parameter 5[1st Device] 2nd Byte
......
Parameter L+3[1st Device] L-th Byte
Parameter L+4[2nd Device] ID
Parameter L+5[2nd Device] 1st Byte
Parameter L+6[2nd Device] 2nd Byte
......
Parameter 2L+4[2nd Device] L-th Byte

Example​

Conditions​

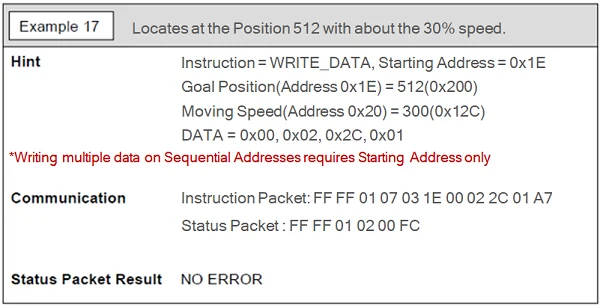

  • ID 0(MX-64) : Write 0x010 to Goal Position(30, 0x1E) and write 0x150 to Moving Speed(32, 0x20)
  • ID 1(MX-64) : Write 0x220 to Goal Position(30, 0x1E) and write 0x360 to Moving Speed(32, 0x20)

Sync Write Instruction Packet​

H1H2Packet IDLENINSTP1P2P3P4P5P6P7P8P9P10P11P12CKSM
0xFF0xFF0xFE0x0E0x830x1E0x040x000x100x000x500x010x010x200x020x600x030x67
warning

WARNING : Status Packet will not be returned if Broadcast ID(0xFE) is used.

Bulk Read​

This instruction is used for reading values of multiple MX series DYNAMIXEL's simultaneously by sending a single Instruction Packet. The packet length is shortened compared to sending multiple READ commands, and the idle time between the status packets being returned is also shortened to save communication time. However, this cannot be used to read a single module. If an identical ID is designated multiple times, only the first designated parameter will be processed.

ItemDescription
Instruction0x92
Length3N + 3
Parameter 10x00
Parameter 2[1st Device] Length of Data
Parameter 3[1st Device] ID
Parameter 4[1st Device] Starting address
......
Parameter 3N+2[Nth Device] Length of Data
Parameter 3N+3[Nth Device] ID
Parameter 3N+4[Nth Device] Starting address
warning

WARNING: Note that a parameter field construction of Bulk Read in DYNAMIXEL Protocol 2.0 differs from the parameter field construction of the Bulk Read in Protocol 1.0.

Example​

Conditions​

  • ID 1(RX-64) : Read the 2-byte Goal Position value(30, 0x1E).
  • ID 2(RX-64) : Read the 2-byte Present Position value(36, 0x24).

Bulk Read Instruction Packet​

H1H2Packet IDLENINSTP1P2P3P4P5P6P7CKSM
0xFF0xFF0xFE0x090x920x000x020x010x1E0x020x020x240x1D

When Bulk Read instruction is received, DYNAMIXEL with ID 2 monitors the status packet being sent from ID 1 of the data bus (the preceeding device ID), and when device ID 1’s status packet transmission is completed, ID 2 sends its own status packet.

ID 1 Status Packet​

H1H2Packet IDLENERRP1P2CKSM
0xFF0xFF0x010x040x000x000x800x7A

ID 2 Status Packet​

H1H2Packet IDLENERRP1P2CKSM
0xFF0xFF0x020x040x000x000x800x79
